• King Yao L650 giant CNC lathe ●Spindle: Heavy load heavy cutting ● turret: can be divided into 8 knives or 12 knives ● Subspindle tailstock ●Automatic scrap iron conveyor ● Independent rotation of the operating box ●Ultra-high-precision V-groove turning optics function

King Yao L650 giant CNC lathe

●Spindle: Heavy load heavy cutting
● turret: can be divided into 8 knives or 12 knives
● Subspindle tailstock
●Automatic scrap iron conveyor
● Independent rotation of the operating box
●Ultra-high-precision V-groove turning optics function
Model : L650

KINGYAO L650 Giant CNC lathe series

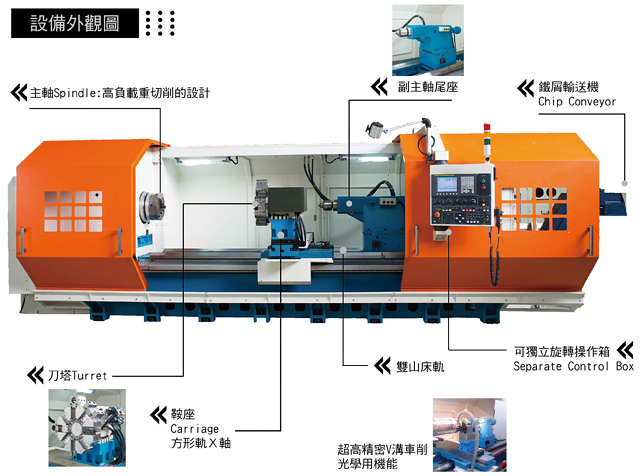

Spindle heavy load heavy cutting design, with the counter-spindle tailstock, square rail X-axis, double mountain bed rails,The scrap iron conveyor is placed in, and iron scrap collection is no trouble.Ultra-high-precision V-groove turning optics function, showing perfect turning skills!



面上旋徑Swing over bed 940㎜
鞍面上旋徑Swing over cross slide 650㎜
兩心間距Distance between centers 26,003,600,460,056,000,000
床面寬度Width of bed 560㎜
主軸孔徑(鼻端&轉速)Spindle bore(nose&speed) Φ125㎜,Φ180㎜
主軸變速檔數Number of spindle speed range (N,L,H)3檔(含空檔)
主軸馬達Spindle motor(30分min/連續Cont) αP40i(30HP/25HP)*αip30/αip40
刀塔Turret(標準Standard)                 外徑刀OD tool口32㎜
       V8
               內徑刀ID tool(Φ50㎜)*60
刀塔Turret(選購Option)                外徑刀OD tool口32㎜
       H4
               內徑刀ID tool(Φ50㎜)*60
X軸移動量Travel of X axis 504㎜
Z軸移動量Travel of Z axis 2690, 3690, 4690, 5690, 6690
推給速度Rapid traverse(X.Z) 8 m/min
伺服馬達Servo motor X:α12i(4HP),Z:α22i(5.3HP)
尾座心軸移動量Travel of tailstock quill 150㎜
尾座心軸直徑Diamter of tailstock quill 125㎜,180㎜
尾座心軸斜度Taper of tailstock quill MT#5 * MT#6
油壓馬達Hydraulic motor 2HP
冷卻泵浦Coolant pump 1HP
機械長度Length of machine 6010, 7010, 8010, 9010, 10010
機械寬度Width of machine 2408㎜
機械高度Height of machine 2200㎜
機械重量Weight of machine 8200, 11330, 14560, 17670, 20170 ㎏


巨型數控車床

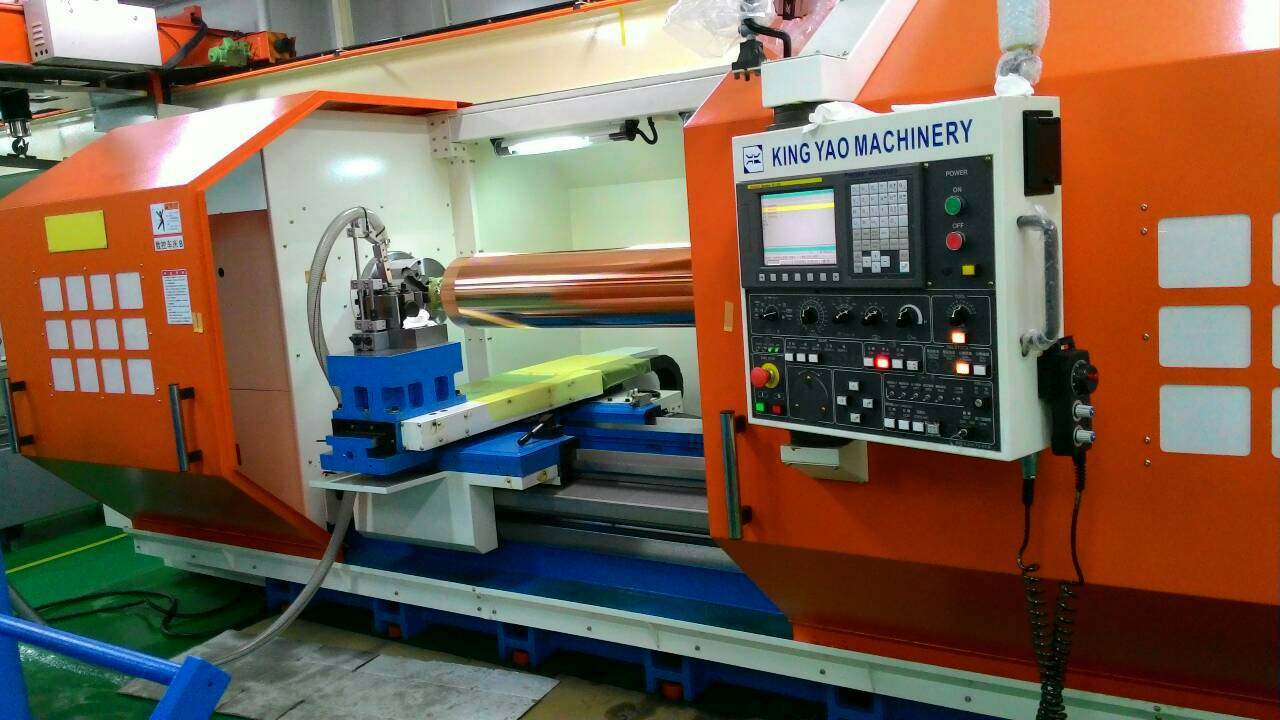

The actual use status of the customer. (Source: KING YAO  Electrical Co., Ltd.)

客戶實際使用2.jpgThe actual use status of the customer. (Source: KING YAO  Electrical Co., Ltd.)
