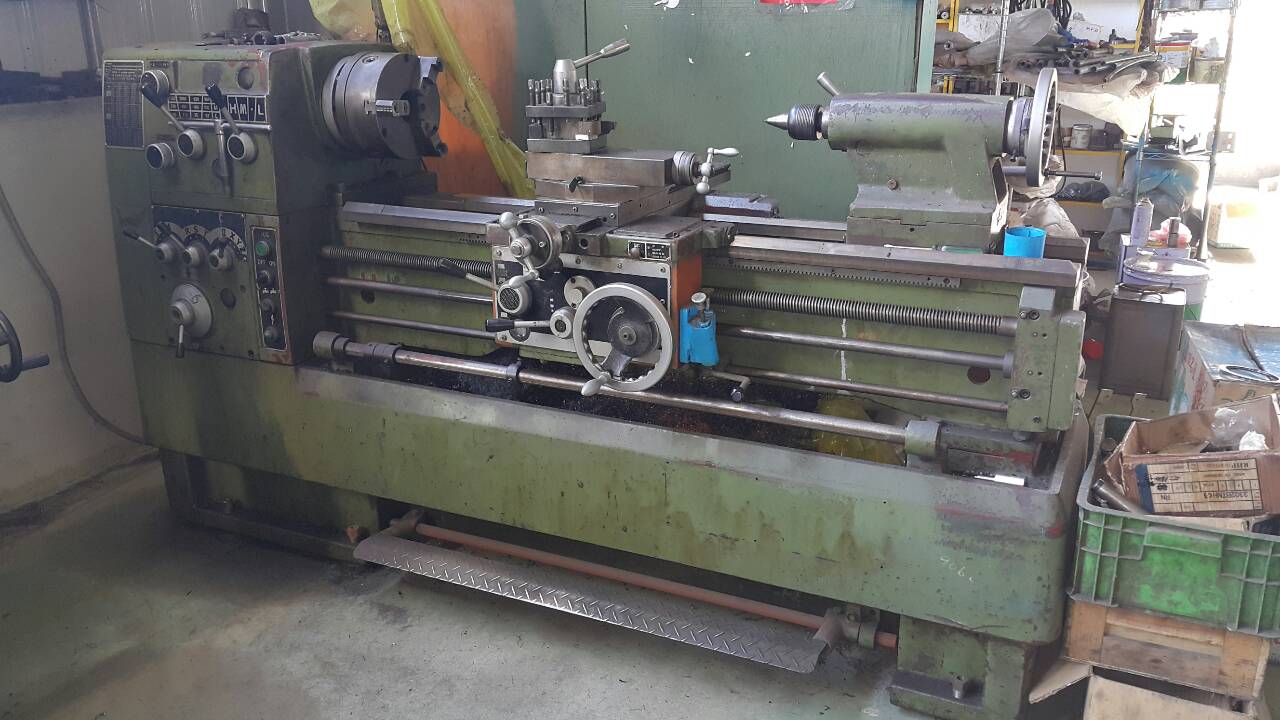

• High Speed Precision Used Lathe Series 430×1700

High Speed Precision Used Lathe Series

▲Bed is made of meehanite and is hardened and precisely ground, Hardness is HS 70 degree.
▲Automatic and manual forced Lubrication pump supplies oil to cross slide and bedways.
▲Oil distributor may be adjusted to lubricate bedway, cross slide, or both.
▲Starting lever with safety device.
▲Emergency foot-operated braking system.
Model : 430×1700
Capacity
Swing over bed 432 mm
Swing over carriage 268 mm
Swing over gap 610 mm
Width of gap in front of face plate 150 mm
Distance between centers ( A1 - 6, A2 - 6 ) 767, 1067, 1667mm ( A1 - 6, A2 - 6 )
Width of bed 300 mm
Stroke of tool post 145 mm
Stroke of cross slide 265 mm
Headstock
Spindle bore 58 mm ( 78 mm) *
Taper of spindle bore & center MT6 x MT4
Number of spindle speeds A1 - 6, D1 - 6 ( A2 - 6 ) *
Spindle nose 12
Spindle speed ( 60 HZ ) ø 58 mm : 35, 52, 75, 110, 160, 230, 330, 490, 650, 950, 1350, 2000 rpm
ø 78 mm : 29, 43, 62, 90, 130, 190, 275, 405, 540, 790, 1120, 1650 rpm
Threading & Feeds
Number of feeds 36
Range of longitudinal feeds metric 0.037 ~ 1.04 mm / rev ( P = 6 mm )
0.035~0.98 mm / rev ( 4 TPI )
Range of cross feeds Half of longitudinal feeds
Leadscrew diameter 35 mm
Leadscrew pitch 4 TPI , P = 6 mm
Range of inch pitches 2 ~ 72 TPI ( 44 Kinds )
Range of metric pitches 0.2 ~ 14 mm ( 39 Kinds )
Tailstock
Quill stroke 170 mm
Quill diameter 60 mm
Quill taper MT # 4
Motor
Main motor ( 30 min. ) 5 HP ( 7.5 HP ) *
Coolant pump motor 1 / 8 HP
Height 1400 mm
Floor space 2000, 2300, 2900 × 1000 mm
Weight 1500, 1600, 1800 kgs
